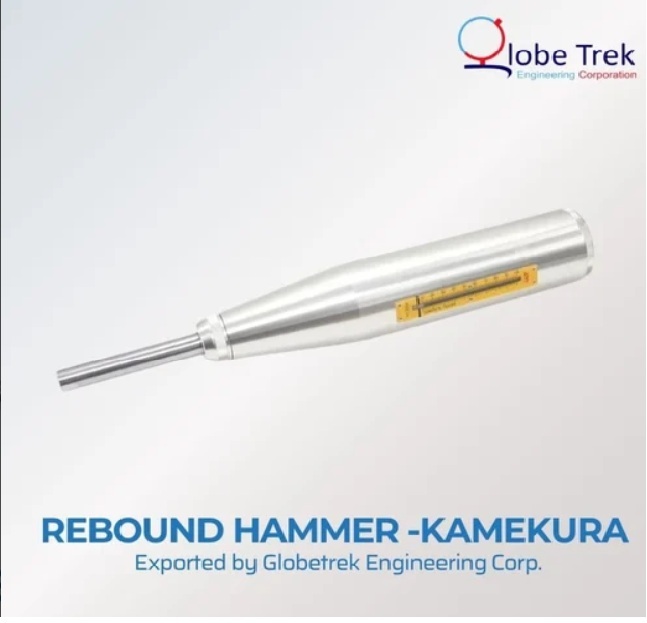

Name: Rebound Hammer
Brand: GLOBETREK ENGINEERING CORPORATION
Price: 140000 INR
Availability: InStock

Rebound Hammer Specification

Resolution
1 MPa

Measuring Range
10-70 MPa

Hardness
Tested as per IS 13311 Part 2

Accuracy
2 MPa

Mounting Type
Handheld

Humidity
90% RH (Operating)

Frequency
Manual Impact

Max Height
Standard Size Handheld

Automation Grade
Manual

Test Range
10-70 N/mm2 (MPa)

Response Time
Instantaneous

Equipment Type
Concrete Rebound Hammer

Temperature
0C to 40C

Power Supply
Not Required (Mechanical)

Number of Specimens
Single Reading Per Impact

Features
Portable, Easy Calibration, Durable Metal Body

Specimen Size
Minimum 150 mm x 150 mm x 150 mm

Application
Testing Surface Hardness and Compressive Strength of Concrete Structures

Display Type
Analog Scale

Usage
Non-destructive Concrete Testing

Capacity
Spring Constant 7.84 N/mm

Machine Weight
1.0 to 1.5 kg

Test Speed
Manual Operation

Test Width
Standard Size for Concrete Surfaces

Test Stroke
75 mm (+/- 0.3 mm)

Control Mode
Handheld/Manual

Hammer Head Material
High Carbon Stainless Steel

Shipping Weight
Approx. 2.0 kg with Carry Case

Impact Energy
2.207 Nm (Newton meters) Standard Type

Color
Polished Metal Finish

Plunger Diameter
18 0.2 mm

Calibration Procedure
4-Point Calibration block included

Reference Standard
IS 13311 (Part 2), ASTM C805, EN 12504-2

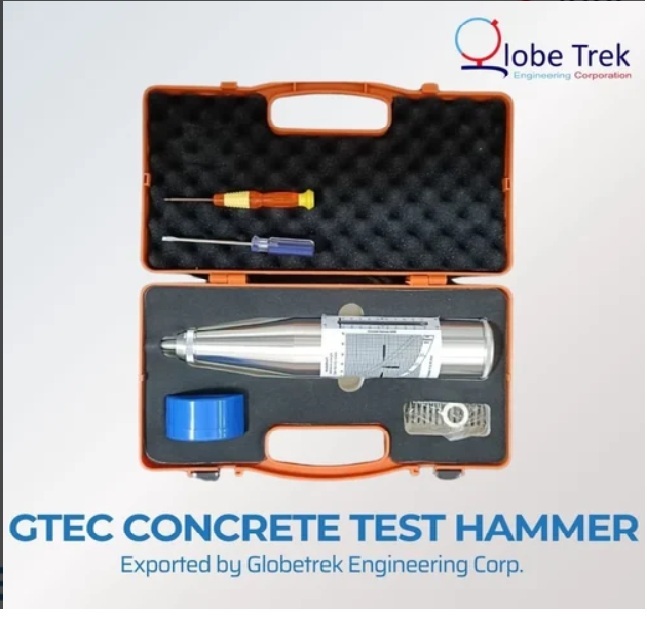

Accessories Supplied
Carrying Case, Calibration Test Anvil, Instruction Manual, Grinding Stone

Body Material
Aluminum Alloy

Rebound Hammer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
7 Pieces Per Day

Delivery Time
1 Week

Main Domestic Market
All India

About Rebound Hammer

Discover instant savings and terrific performance with our sought-after Rebound Hammer, engineered for non-destructive concrete testing. Personalise your assessment of compressive strength with breathtaking accuracy (2 MPa), thanks to an analog scale and a durable, polished high-carbon stainless steel head. Affordable, lightweight, and portable, this manual instrument meets IS 13311 (Part 2), ASTM C805, and EN 12504-2 standards. It includes all essential accessories, a 4-point calibration block, and a sturdy carry case-making it the ideal choice for professionals demanding swift, reliable, and repeatable results on-site.

Versatile Application for Construction Professionals

The Rebound Hammer is suitable for both general and specific use across a wide range of concrete structures. Its primary application lies in evaluating surface hardness and the compressive strength of concrete, making it a valuable tool for civil engineers, site supervisors, and structural auditors. Designed for portable and manual operation, this device streamlines quality control checks, structural inspections, and routine maintenance in diverse construction environments, ensuring safety and compliance with internationally recognized standards.

Expansive Market Reach & Seamless Transactions

Our Rebound Hammer enjoys strong demand across major export markets, including Asia, the Middle East, Europe, and Africa, and is equally popular in the Indian domestic market. Packing & Dispatch are handled with care in durable carrying cases, ensuring product integrity during transit. Customers benefit from quick dispatch and flexible payment terms. Requesting an asking price or a quotation is fast and responsive, supporting smooth procurement for distributors, contractors, and service providers.

FAQ's of Rebound Hammer:

Q: How does the Rebound Hammer test concrete hardness?

A: The Rebound Hammer measures the rebound of a spring-driven mass impacting a concrete surface. This rebound value directly correlates to the surface hardness and, subsequently, the compressive strength of the concrete.

Q: What accessories are included with the Rebound Hammer?

A: Each Rebound Hammer set includes a sturdy carrying case, calibration test anvil, instruction manual, and a grinding stone for surface preparation, ensuring comprehensive support during testing.

Q: When should I recalibrate the Rebound Hammer?

A: Calibration should be performed using the supplied calibration block-typically after every significant project or if the instrument has been dropped or shows irregular readings, to ensure ongoing measurement accuracy.

Q: Where can the Rebound Hammer be effectively used?

A: The Rebound Hammer is ideal for field testing on concrete columns, beams, and slabs in new constructions, existing structures, bridges, and pavements. Its compact, portable design enables easy on-site evaluations.

Q: What are the benefits of using this manual concrete testing tool?

A: Benefits include non-destructive assessment, immediate results, affordable operation, and compatibility with international standards. Its manual, handheld design offers flexibility for rapid, repeatable testing without additional power supply.
