Flat Jack Test Insitu Stress Measurement Apparatus with Data Logger

Flat Jack Test Insitu Stress Measurement Apparatus with Data Logger Specification

Temperature Resistance
Up to 60°C

Accuracy
±1% (Pressure Measurement) %

Control Type
Digital (Data Logger)

Features
Portable, Robust, Real-time Data Logging, User Friendly, High Precision Pressure Measurement

Display Type
Digital LCD Display

Shape
Flat Rectangular Jack

Power Supply
Mains Operated (Data Logger), Manual Pump

Type
Flat Jack Test Insitu Stress Measurement Apparatus with Data Logger

Dimension (L*W*H)
Approx. 300 mm x 150 mm x 80 mm (varies with setup) Millimeter (mm)

Equipment Type
Insitu Stress Measurement

Equipment Materials
Stainless Steel Flat Jack, Digital Data Logger, Pressure Pump, Grouting Accessories

Power
Data Logger: 220V AC, Manual Pump Operation Volt (v)

Voltage
220V / 50Hz (Data Logger) Volt (v)

Material
Corrosion-resistant Stainless Steel and High-Grade Aluminium

Application
Measurement of in-situ compressive stresses in masonry wall and concrete structures

Calibration
Pre-calibrated and field re-calibration option

Sensor Type
High-sensitivity pressure transducer

Weight
Approx. 8 kg (full apparatus set)

Compliance Standard
Meets IS 11093, ASTM C1197 standards

Test Medium
Hydraulic Oil

Hydraulic Hose Length
2 meters (standard configuration)

Pressure Range
0 to 250 bar

Data Storage
Internal memory with USB download option

Sampling Rate
Up to 10 samples/sec

Data Logger Interface
USB and RS232 Connectivity

Mounting
Supplied with wall anchoring kit

Operation Environment
On-site, construction and laboratory environments

Flat Jack Test Insitu Stress Measurement Apparatus with Data Logger Trade Information

Minimum Order Quantity
1 Number

FOB Port
01

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
01 Number Per Week

Delivery Time
01 Week

Sample Available
No

Sample Policy
Within a certain price range free samples are available

Packaging Details
Export

Main Export Market(s)
Asia, Australia, North America, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO

About Flat Jack Test Insitu Stress Measurement Apparatus with Data Logger

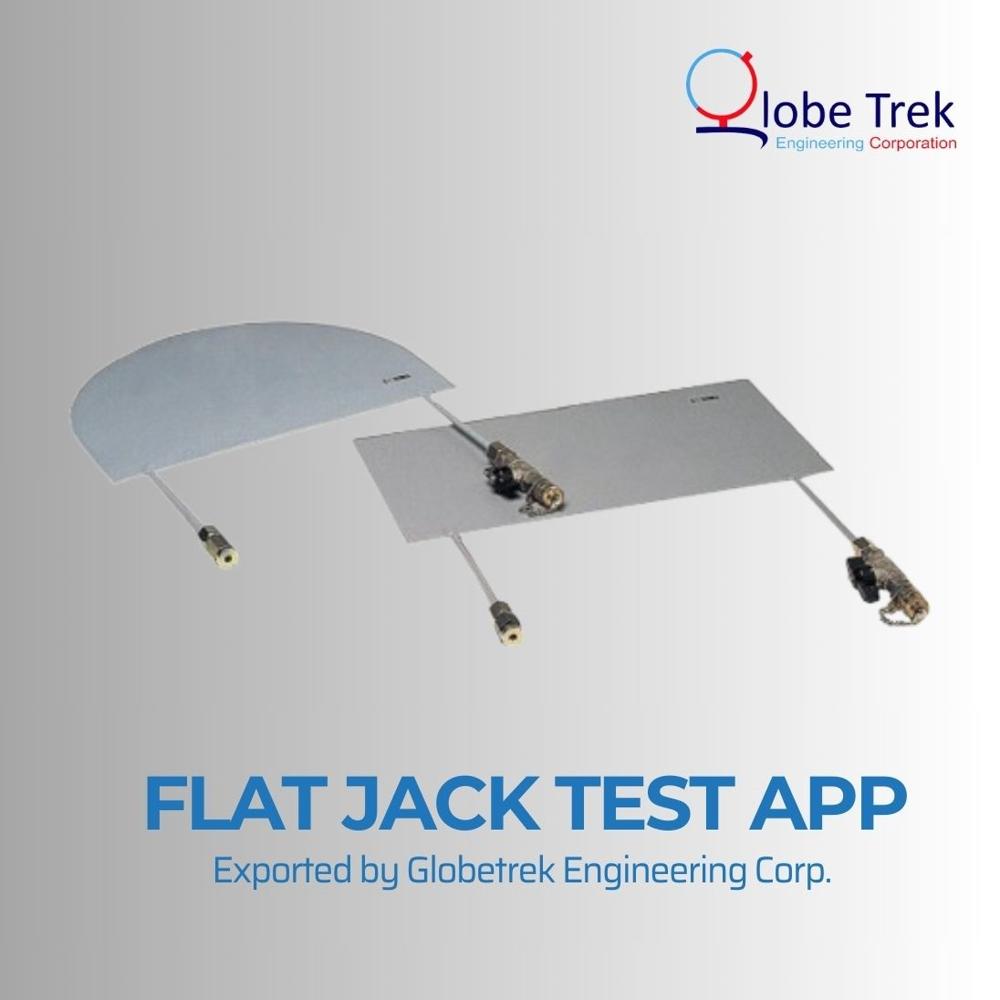

FlatJackTest Insitu Stress Measurement Apparatus, complete ready to use withflatjack, pressure transducer, electronic extensometer, hose pipe, pump, 8 channel Data logger.

Capacity	5 Ton
Model Name/Number	GT-FJT-01
Body Material	Metal
Material	Stainless Steel, Mild Steel
Condition	New
Delivery	within 3-4 weeks

Flat Jack Test can be used to determine in-situ Stress, Deformability and Resistance of masonry or other structures. This test is carried by cutting a slot into the structure to accommodate flat jacks or two, keeping the second jack at perpendicular to the previous one. This flat jack is than pressurized to desire level and related strains in adjoining area is read. For Stress measurement a single flat jack can be used BUT for deformability and Resistance.

Precise In-situ Stress Measurement

This apparatus enables high-precision measurement of in-situ compressive stresses using a robust stainless-steel flat jack and advanced digital data logger. It is engineered for direct use on-site and in laboratories, compatible with masonry and concrete structures, and delivers results with exceptional accuracy.

Comprehensive Data Management and Connectivity

Benefit from real-time data logging, internal data storage, and the convenience of USB download. The device's digital data logger interfaces via both USB and RS232 ports for seamless integration with your existing monitoring systems, ensuring easy retrieval and further analysis of measurement data.

Portable and Durable for Field Applications

Weighing approximately 8 kg and supplied with a sturdy carrying case, this equipment is both portable and rugged. Constructed from corrosion-resistant stainless steel and high-grade aluminium, it withstands harsh conditions, withstanding temperatures up to 60C, ensuring reliability at various test sites.

FAQ's of Flat Jack Test Insitu Stress Measurement Apparatus with Data Logger:

Q: How does the Flat Jack Test Insitu Stress Measurement Apparatus measure stresses within a structure?

A: The apparatus utilizes a flat jack inserted into prepared slots in masonry or concrete. When pressurized with hydraulic oil, the high-sensitivity pressure transducer measures the force required to restore the original state. The digital data logger then records the in-situ compressive stress values accurately.

Q: What data logging and transfer options does the system offer for field use?

A: Data is stored in the apparatus's internal memory, and users can download it easily via a USB connection. Additionally, the data logger supports both USB and RS232 connectivity, making it compatible with a range of data management systems for post-test analysis.

Q: When is field re-calibration recommended for this apparatus?

A: Although the system is pre-calibrated, field re-calibration is recommended periodically-particularly after extensive use, before critical testing sequences, or if there is any indication of abnormal readings during operation to ensure continued measurement accuracy.

Q: Where can the insitu stress measurement apparatus be effectively utilized?

A: This apparatus is designed for on-site, construction, and laboratory environments, making it suitable for use in the assessment of masonry walls, concrete structures, and other settings where accurate in-situ stress measurement is required.

Q: What is the process for conducting an in-situ stress test using this equipment?

A: The process involves mounting the flat jack in a pre-cut slot, connecting hydraulic hoses, and using the manual pump to pressurize the jack. The pressure transducer records stress levels, while the digital data logger captures and displays readings in real-time for precise documentation.

Q: How does using this apparatus benefit construction or inspection workflows?

A: Its portable design, real-time digital data logging, and high measurement accuracy streamline stress analysis tasks, improve the reliability of structural assessments, and facilitate compliance with international testing standards such as IS 11093 and ASTM C1197.
